Multi Rack
External 4-level magazine ideal for small diameters or shaped bars.
Capacity
1800 mm
IEMCA / Vícevřetenové
Pra 52
Standalone bar feeder for multi-spindle lathes
Available versions
3100 mm3300 mm3500 mm3800 mm4200 mm5100 mm
Description
Why Pra 52 is suitable for your operation
Pra 52 is a universal automatic bar feeder designed to supply multi-spindle CNC lathes with 5, 6 or 8 spindles.
It is designed for bars with diameters from 4 to 52 mm and lengths from 1500 to 4200 mm, available in round, square or hexagonal profiles.
The feeder is available with a Multi Rack magazine with four levels, 450 mm wide and with a total capacity of 1800 mm, or with a Bundle magazine for material bundles weighing up to 2.5 tonnes.
More than 3,000 customers worldwide have chosen Pra 52 for its simple operation, versatility and high productivity. It is a practical solution for efficient automated bar supply to multi-spindle CNC lathes.
Technical data
Detailed specifications
Parameter
Value
Material length
1500–4200 mm
Headstock type
Fixed headstock
Round bar diameter
4–52 mm
Hex bar diameter
4–45 mm
Square bar diameter
4–36 mm
Bar changeover time
22 s
Max. bar weight
75 kg
Weight
Version 3100: 780 kg
Version 3300: 800 kg
Version 3500: 820 kg
Version 3800: 850 kg
Version 4200: 900 kg
Version 5100: 1000 kg
Feed rate
0 mm/s
Return speed
750 mm/s
Installed power
4 kW
Power supply
230/400 V
Air pressure
6 bar
Spindle count
8
External magazines
Bundle
External magazine allowing an entire bundle of material to be loaded by forklift or crane.
Capacity
2000 kg

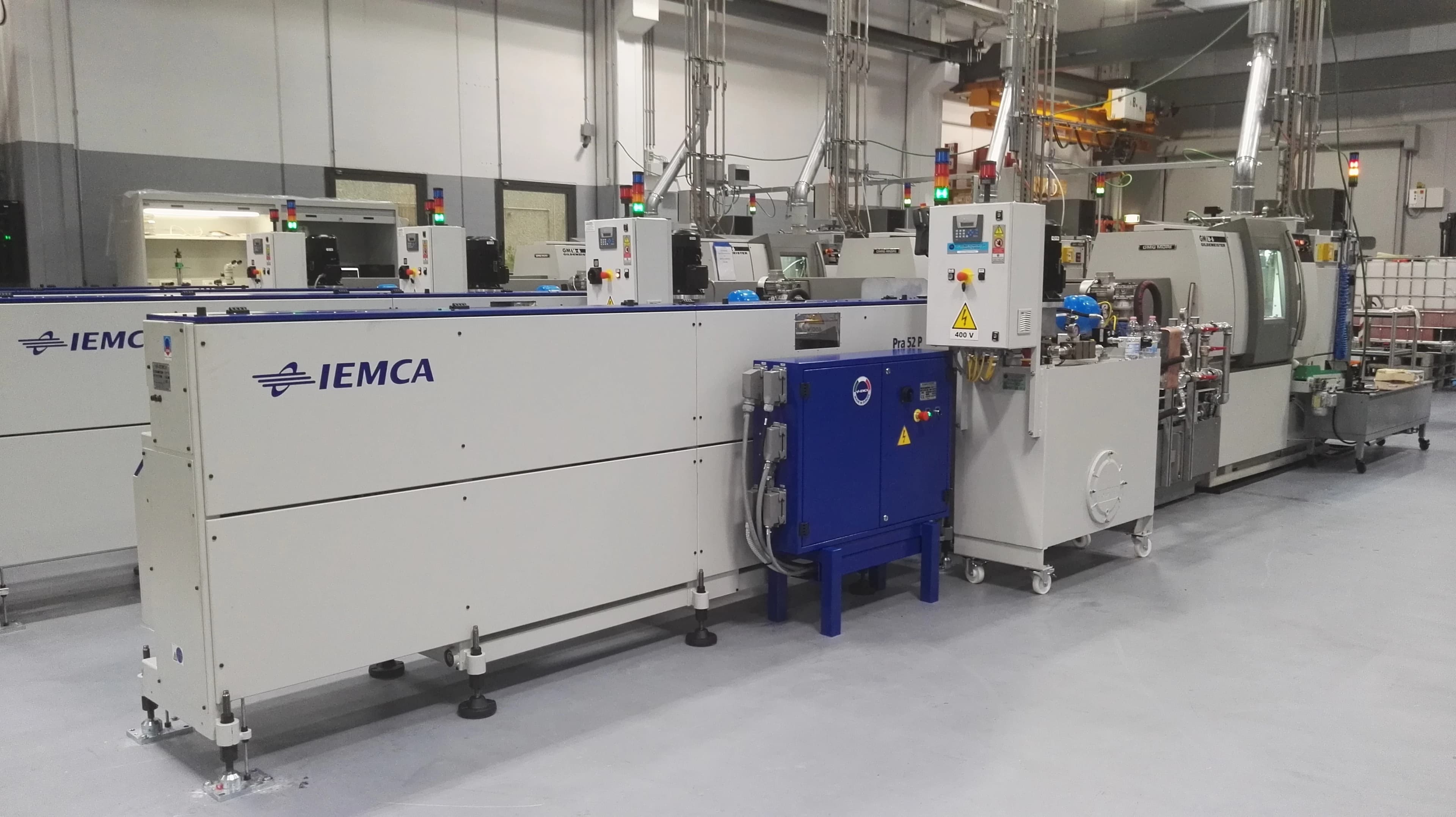

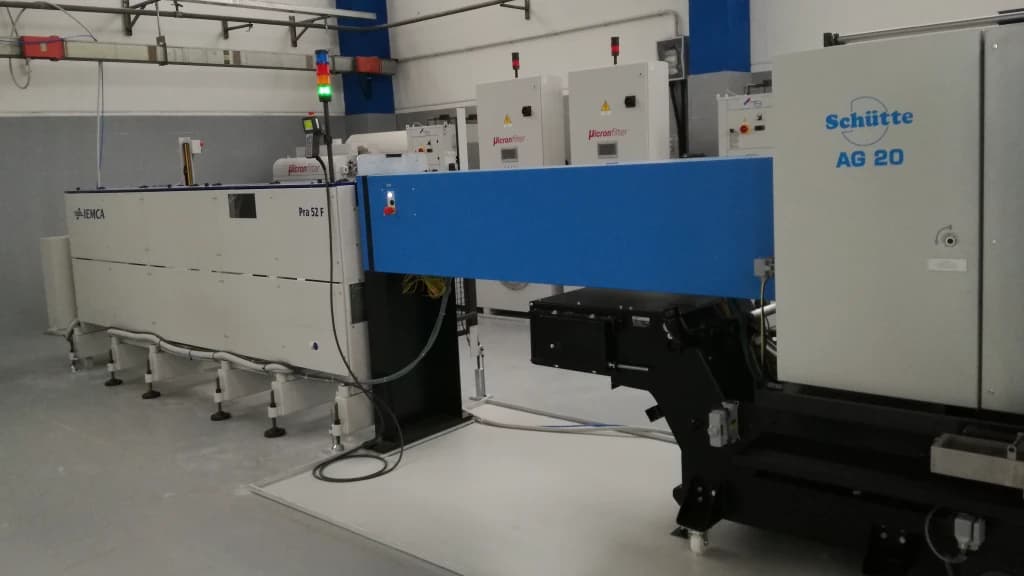

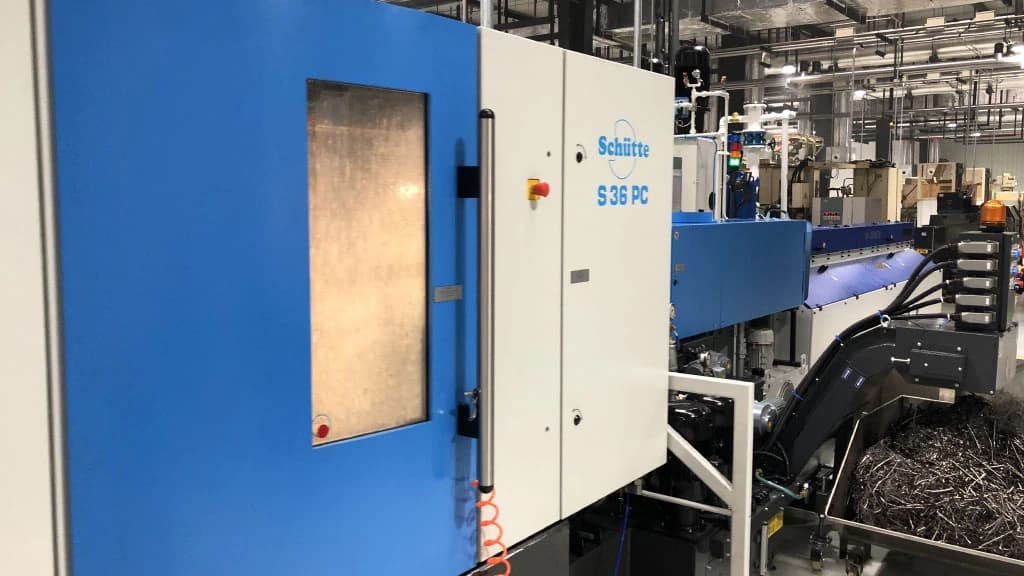

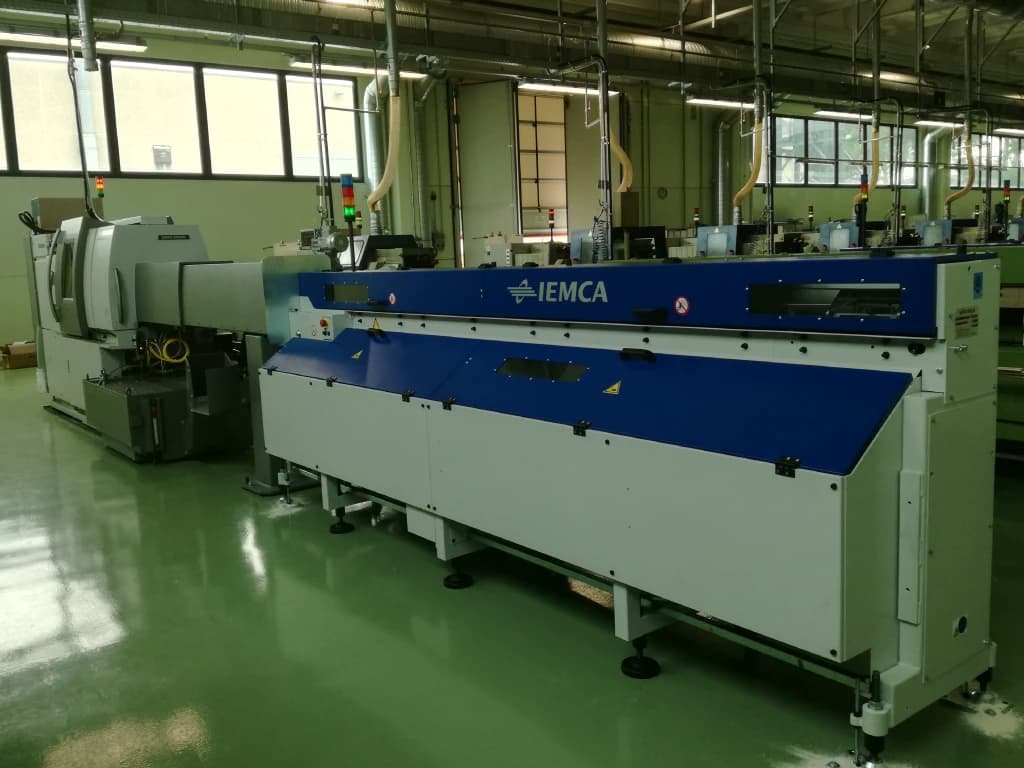

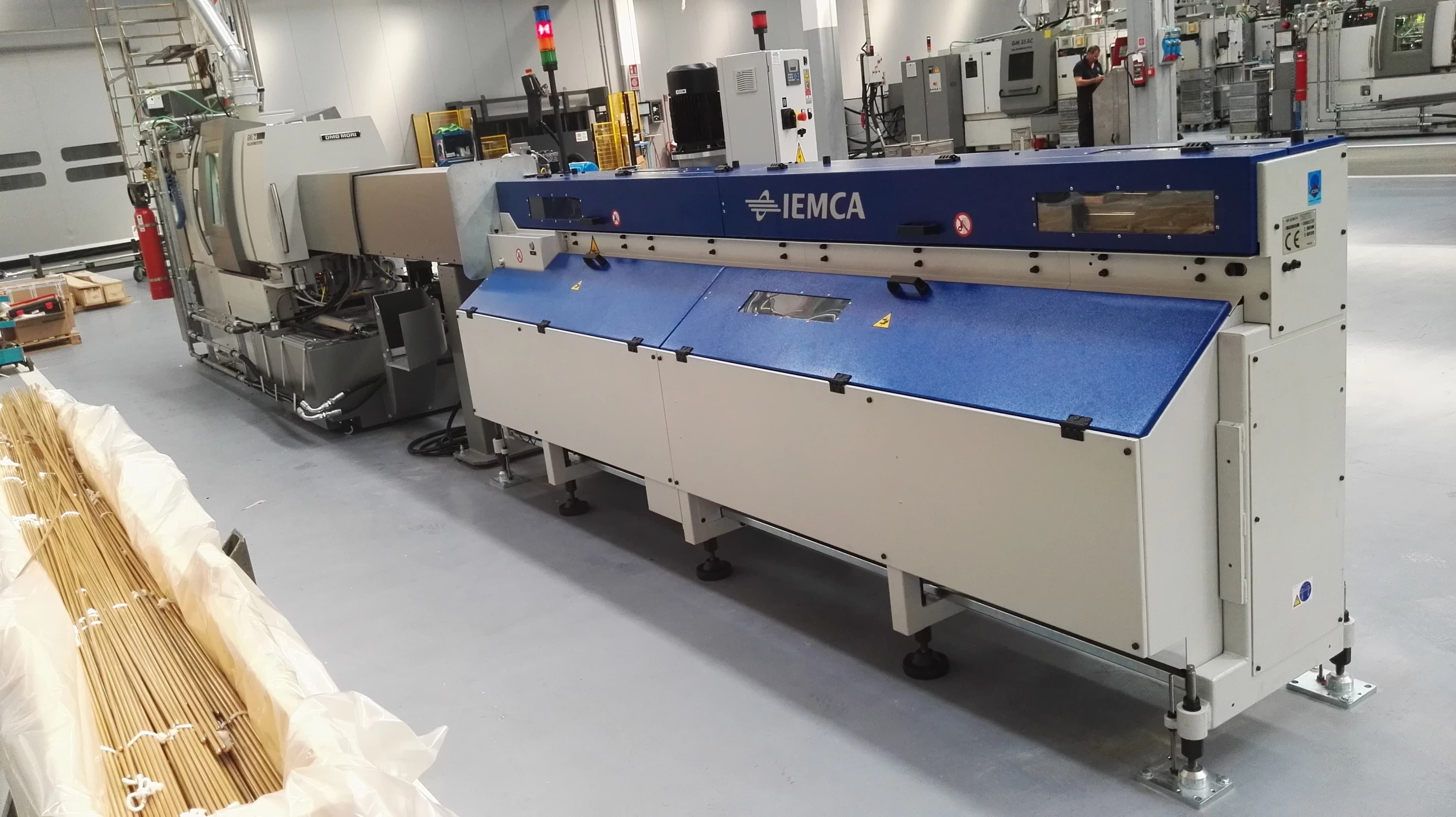

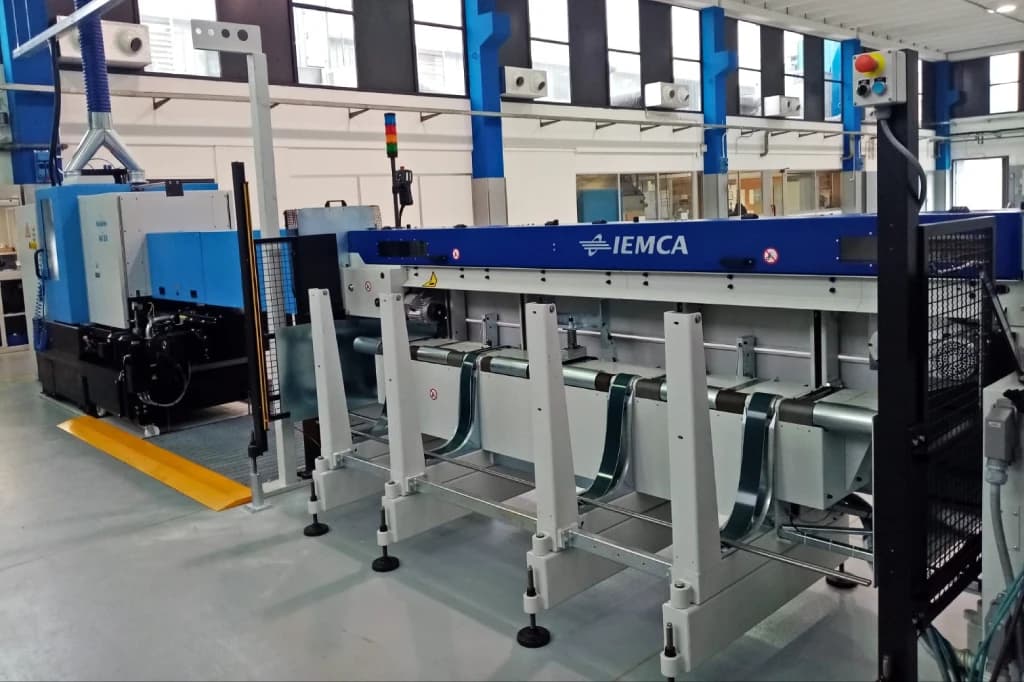

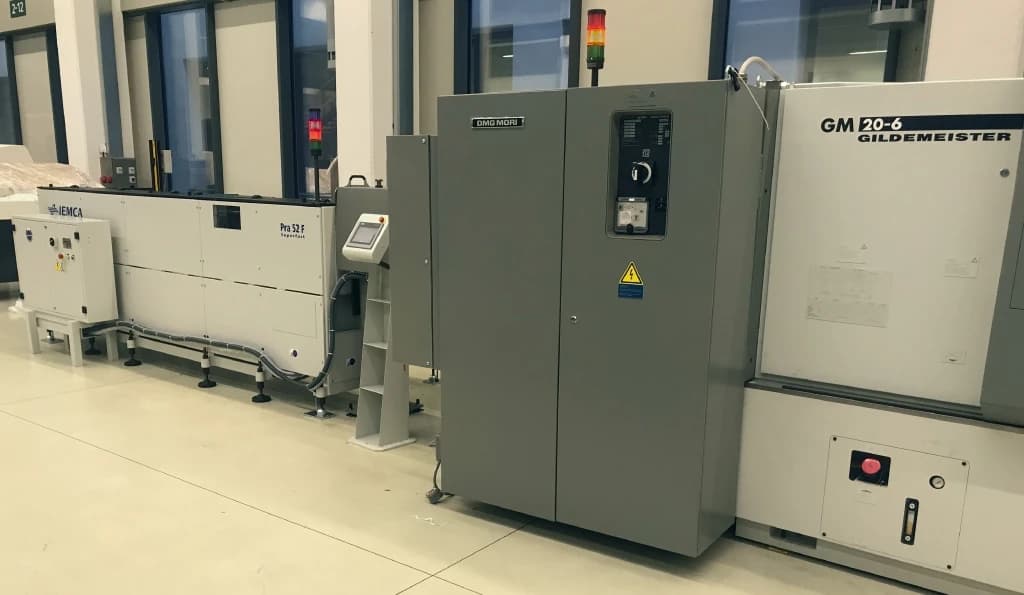

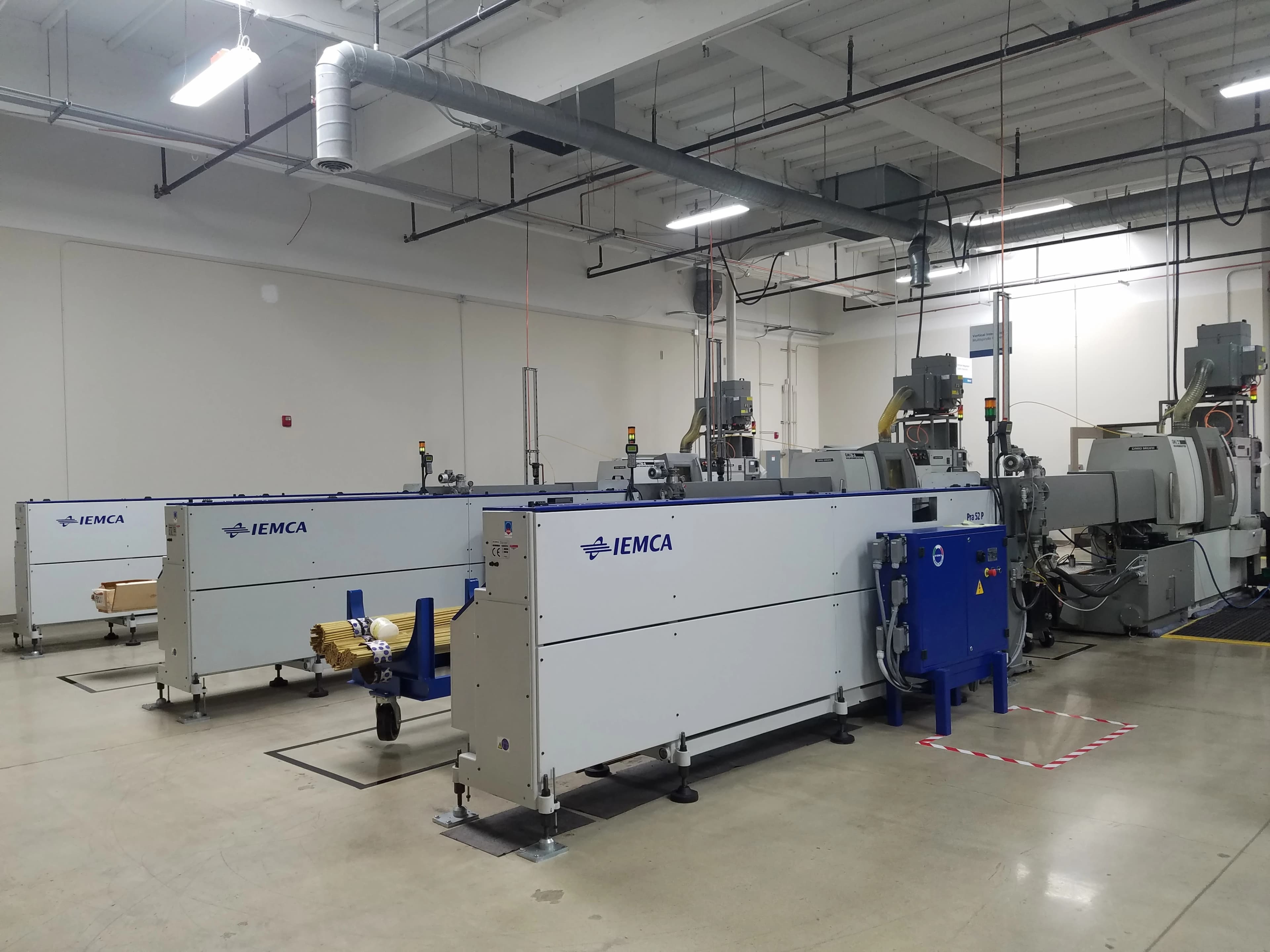

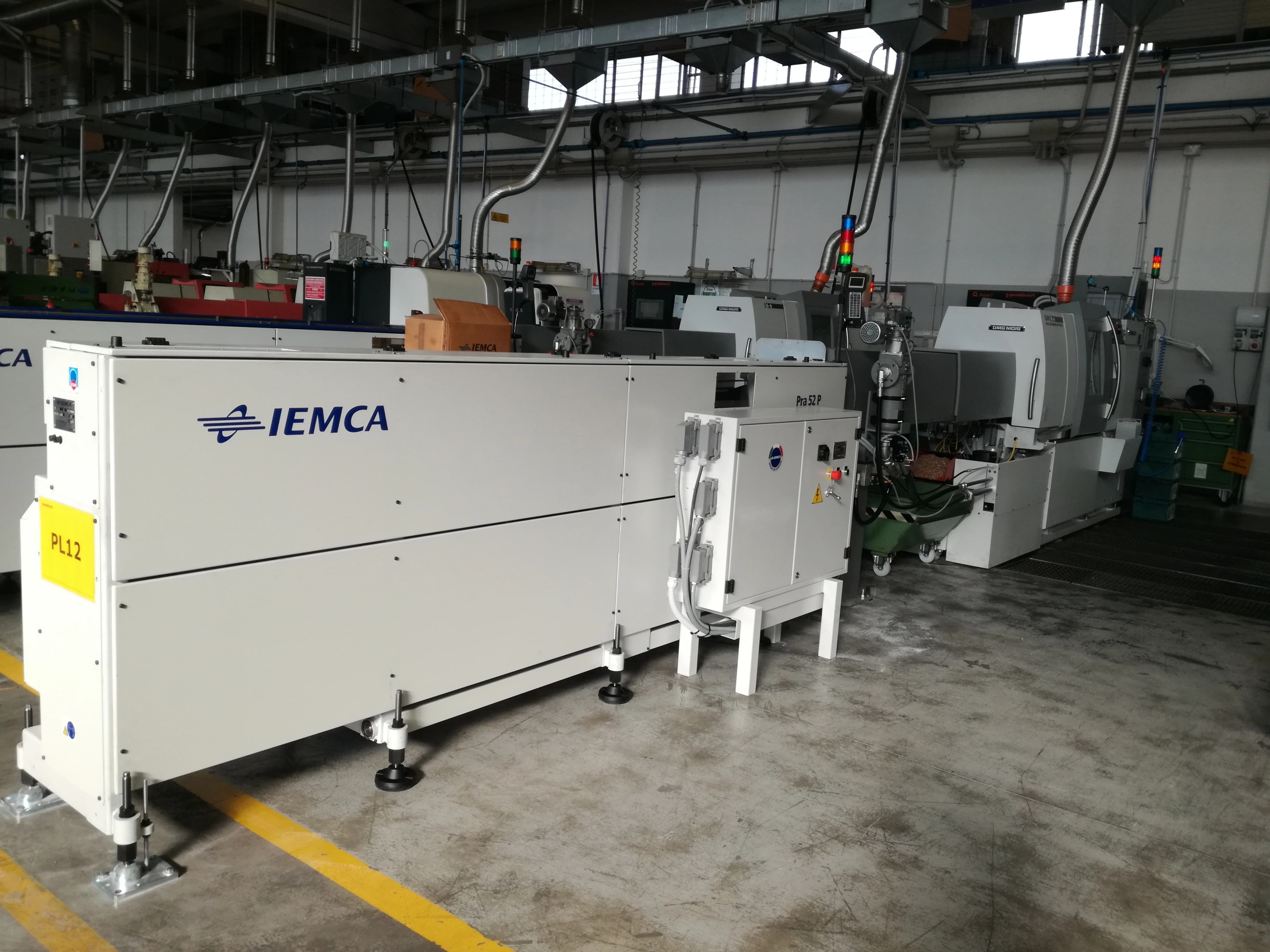

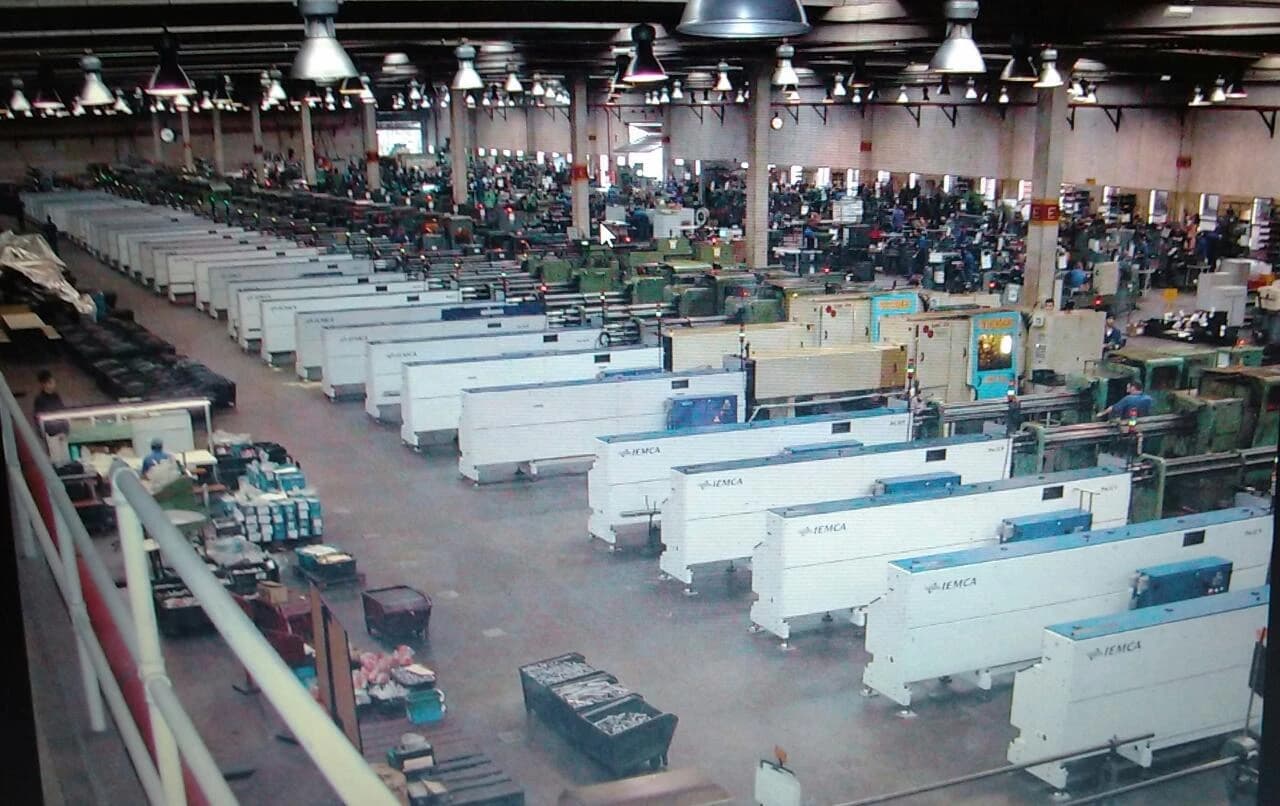

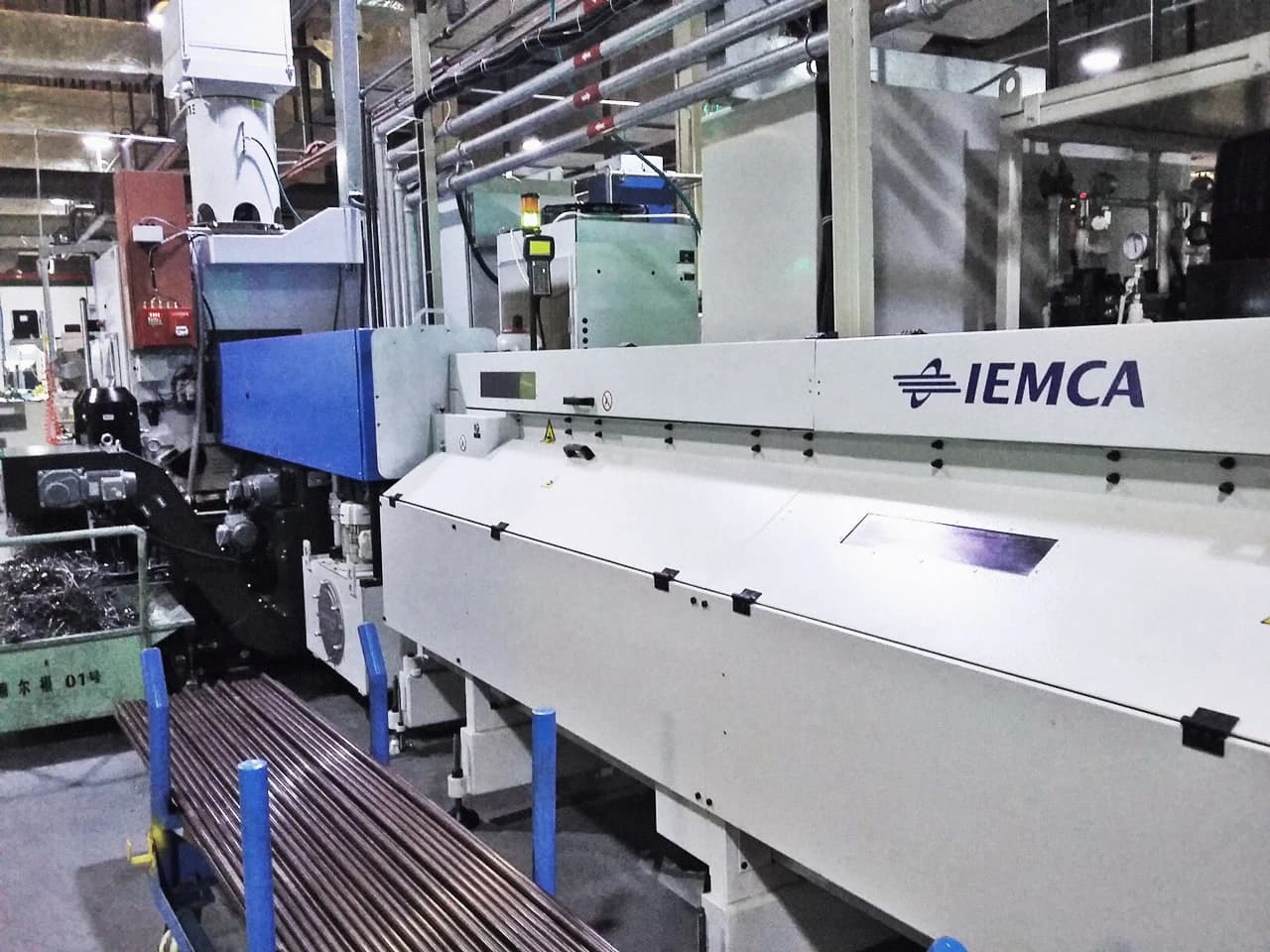

Installation examples
Frequently asked questions
Answers to the questions our customers ask most often.
Why choose IEMCA bar feeders over competing products?
The highest precision, the best vibration damping, the fastest bar-change cycle during material feeding, many years of experience and fair customer support make IEMCA bar feeders the best choice on the market.
How long does delivery of IEMCA bar feeders take?
The standard delivery time is around 4–8 weeks from order confirmation. Production may take longer depending on the workload of the production line for the given model; we will confirm the exact date by email.
What is the warranty on IEMCA bar feeders?
The standard warranty is 12 months, with the option to purchase an extended warranty for 18 or 24 months.
Do you offer bar feeders for all types of CNC lathes?
Yes, IEMCA bar feeders can be installed on all CNC lathes requiring automated bar feeding. The lathe control system does not matter.
Do you provide service for IEMCA bar feeders after the warranty period?
Yes. In addition to equipment installation, training and spare parts supply, our service team also provides comprehensive post-warranty service.
Does IEMCA offer high-pressure coolant systems?
Yes. IEMCA offers 2 high-pressure coolant models – Blue Line 100 and Clear Line 50. Both models can be integrated with an IEMCA bar feeder or supplied in the standalone SOLO version, which does not require an IEMCA bar feeder.
How do I choose the right IEMCA bar feeder for my CNC lathe?
You can use the configurator on this page to find the right IEMCA bar feeder model for your CNC lathe. You can also contact us by phone or email and we will be happy to advise you on the selection.
Can an IEMCA bar feeder be connected to my existing CNC lathe?
Yes, provided your CNC lathe is prepared for a bar feeder. If it is not, you will need to contact your CNC lathe supplier to find out whether the lathe can be prepared for a bar feeder.
Do you provide transport, installation, commissioning of the bar feeder and training?
Yes, transport, installation, commissioning of the bar feeder and subsequent training are included in the product price.
What bar diameters and lengths can IEMCA bar feeders handle?
IEMCA bar feeders can feed bars from 0.3 mm up to 100 mm in diameter and from 90 mm up to 6380 mm in length.
