Sir Heavy Duty
High-performance bar feeder for INDEX multi-spindle lathes
Description
Why Sir Heavy Duty is suitable for your operation
Sir Heavy Duty is a range of automatic bar feeders developed for Index multi-spindle CNC lathes with 6 or 8 spindles. It is intended for demanding applications with bars from 4 to 52 mm in diameter and 1500 to 4300 mm in length.
It enables easy bar loading and efficient handling of remnant material without the need for a standard feeding device. This significantly saves production space and enables a more efficient workstation layout.
IEMCA patented adjustable coils provide high flexibility when changing bar diameters and enable quick adaptation to different material sizes. The feeder design also allows high rotational speeds and ensures reliable operation.
Sir Heavy Duty is available with a Multi Rack or Bundle magazine with capacity for material bundles weighing up to 2 tonnes. The equipment also includes a bar-end drilling unit, enabling further material processing directly within the feeding system.
The feeder is compatible with Index multi-spindle CNC lathes MS16 Plus, MS18/6, MS22/6, MS22/8, MS40/6, MS40/8 and MS52/6.
Sir Heavy Duty is a robust and flexible solution for automated bar feeding in demanding industrial applications where high productivity, speed, easy operation and efficient use of production space are important.
Technical data
Detailed specifications
Parameter
Value
Material length
1500–4300 mm
Headstock type
Fixed headstock
Round bar diameter
4–52 mm
Hex bar diameter
4–45 mm
Bar changeover time
36 s
Max. bar weight
78 kg
Weight
Version 3300: 1900 kg
Version 3800: 2100 kg
Version 4300: 2200 kg
Feed rate
1500 mm/s
Return speed
1500 mm/s
Installed power
6 kW
Power supply
230/400 V
Air pressure
6-10 bar
Spindle count
8
External magazines
Bundle
External magazine allowing an entire bundle of material to be loaded by forklift or crane.
Capacity
2000 kg

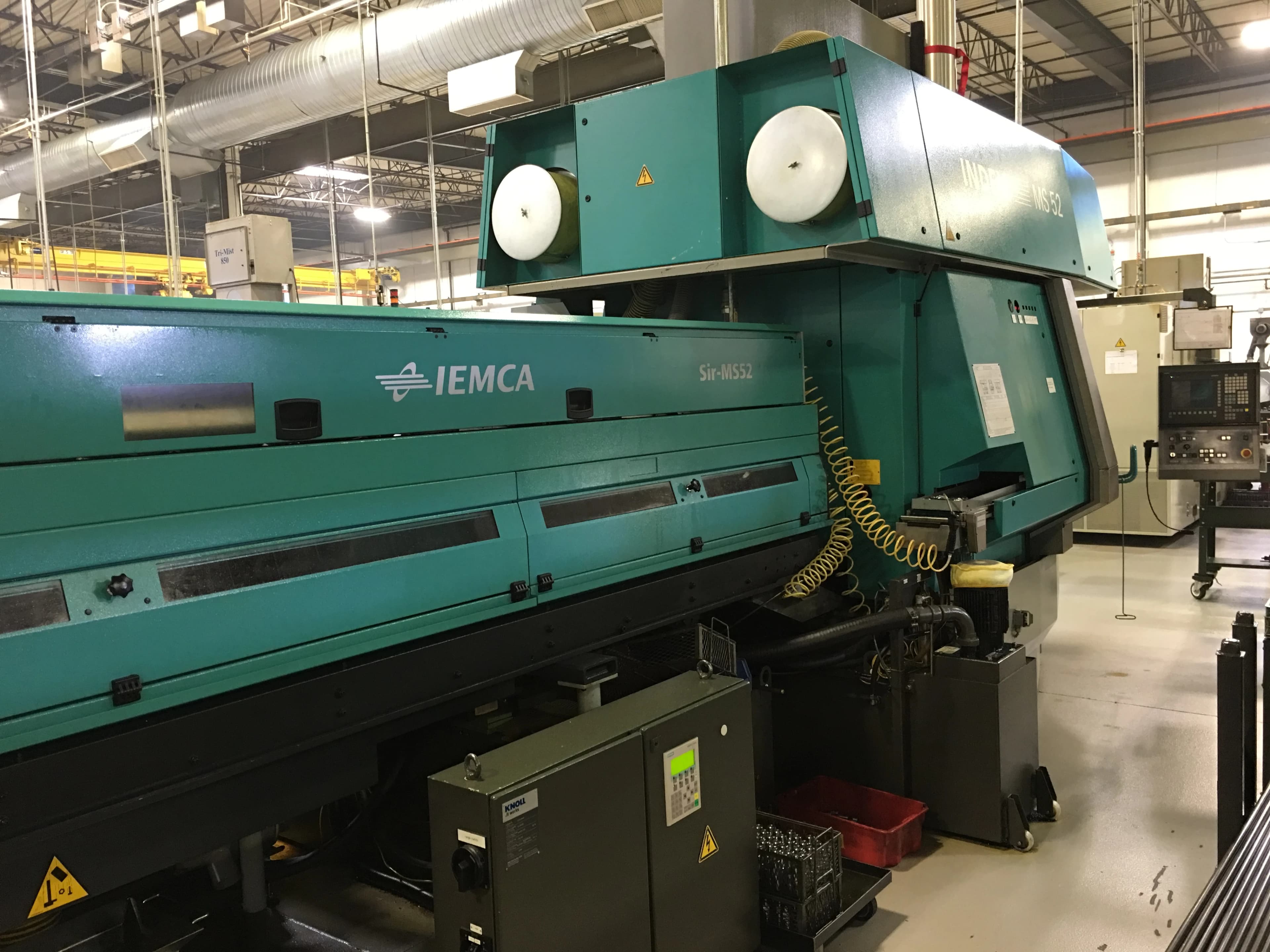

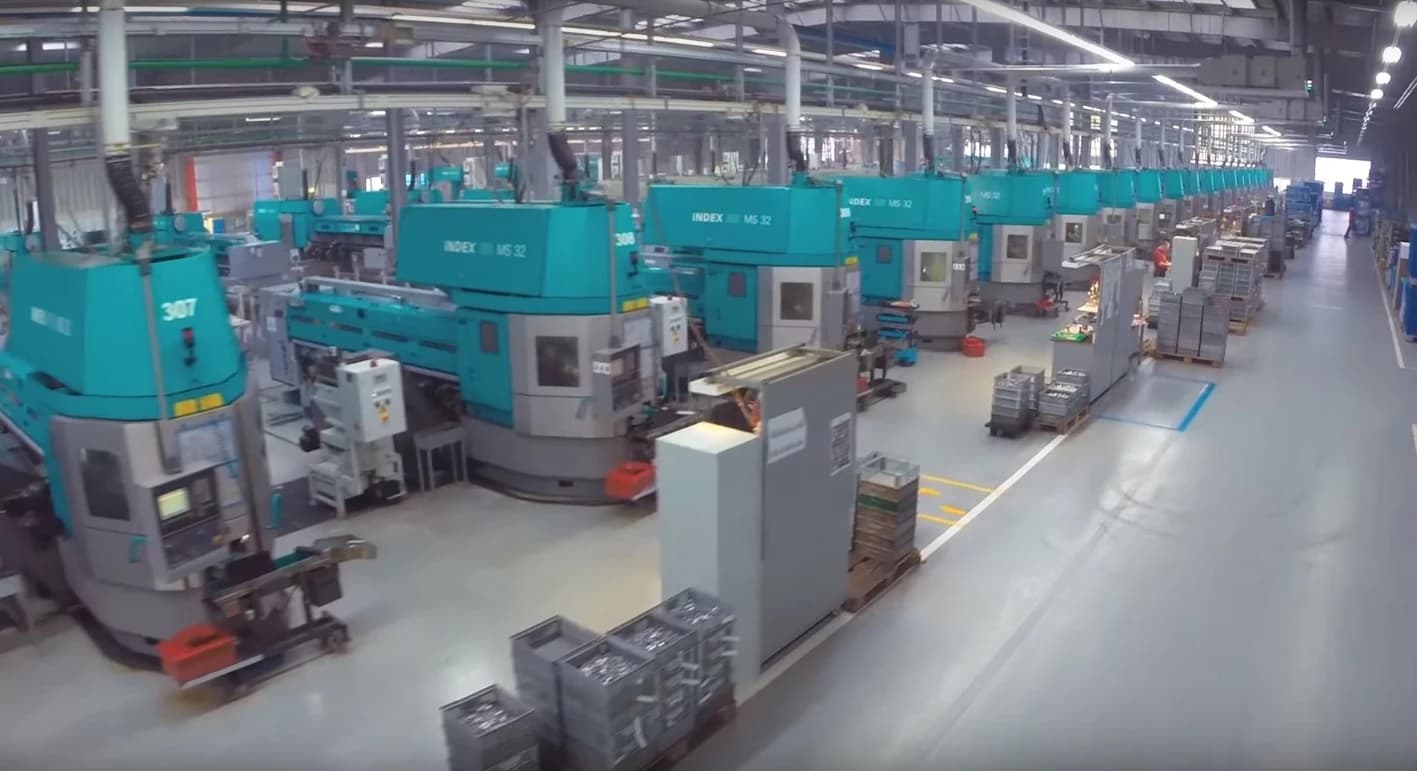

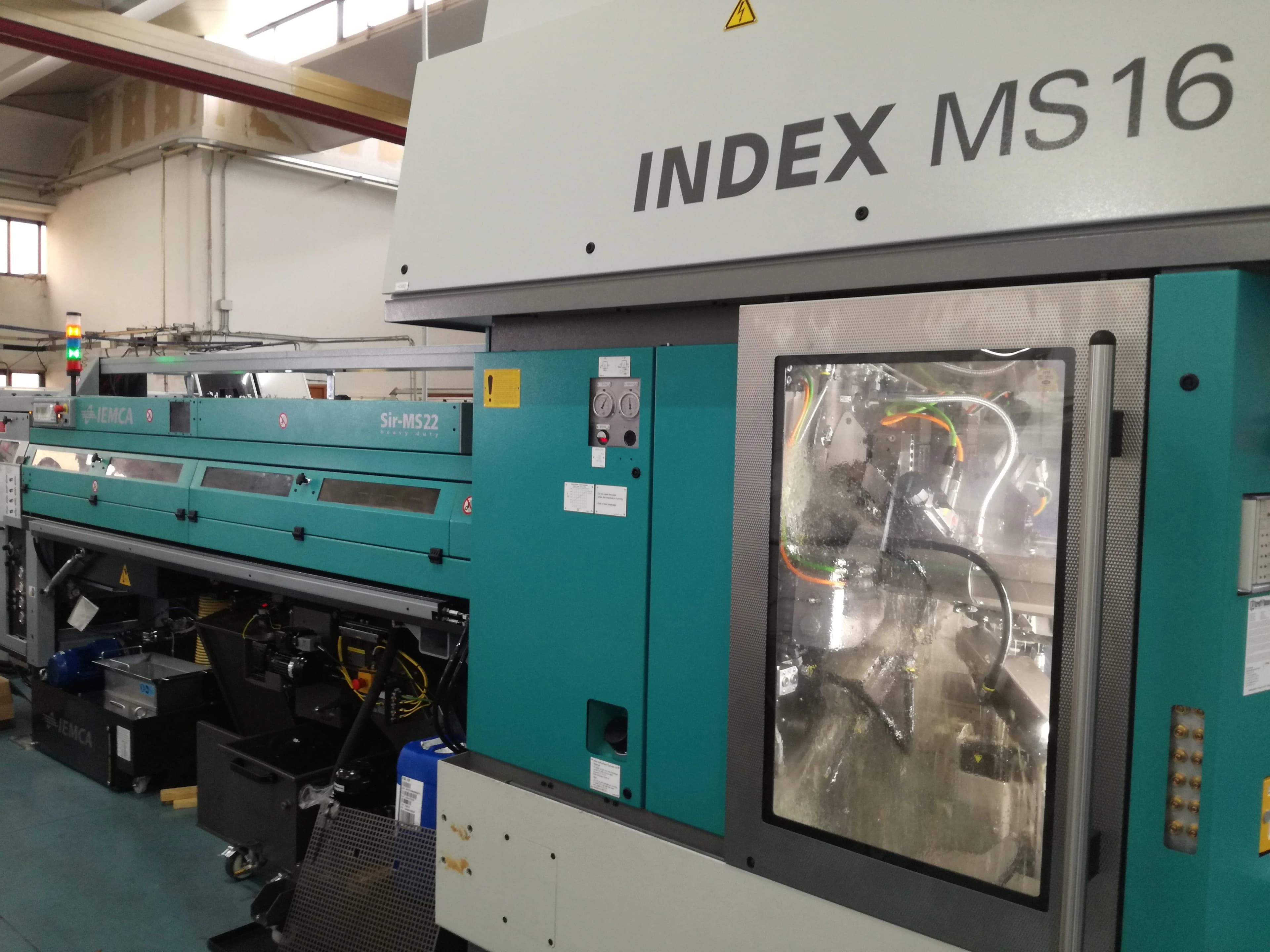

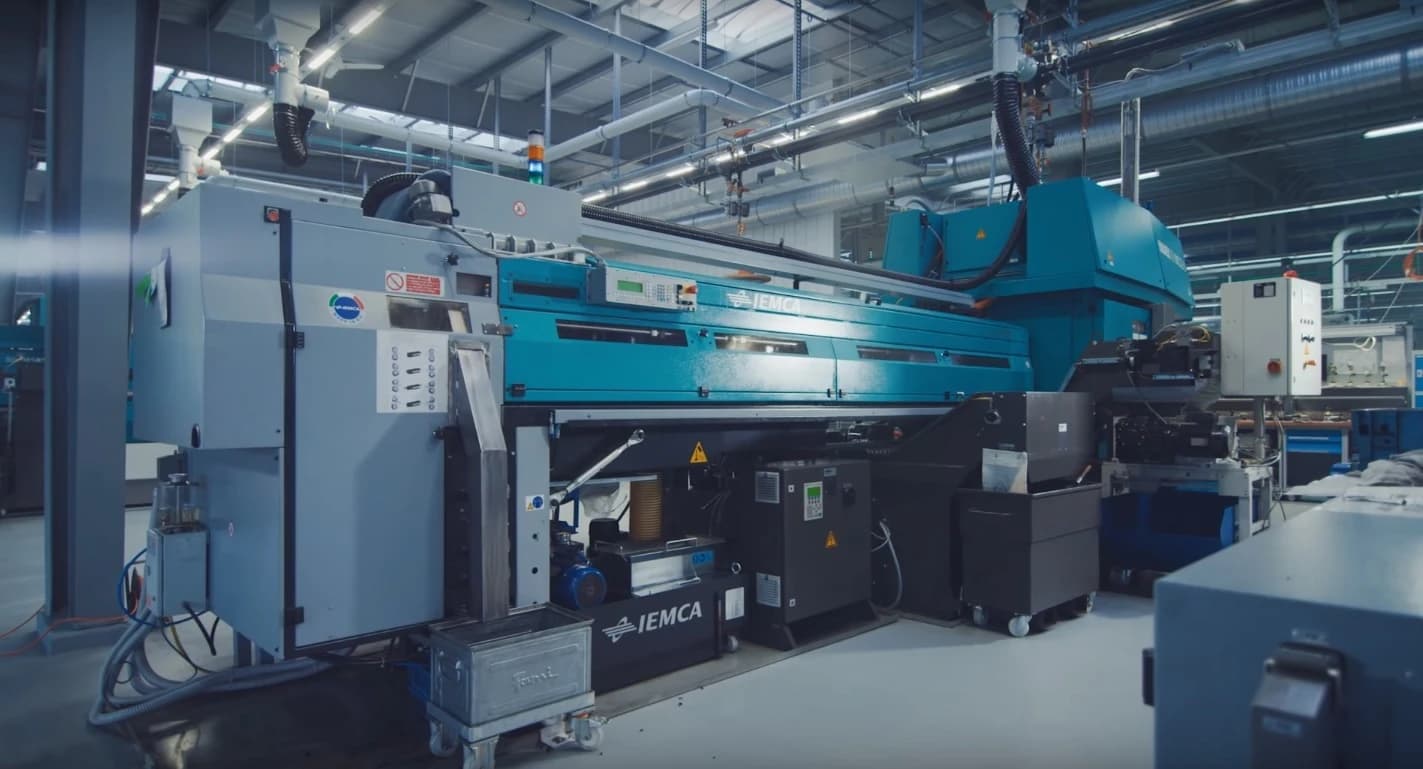

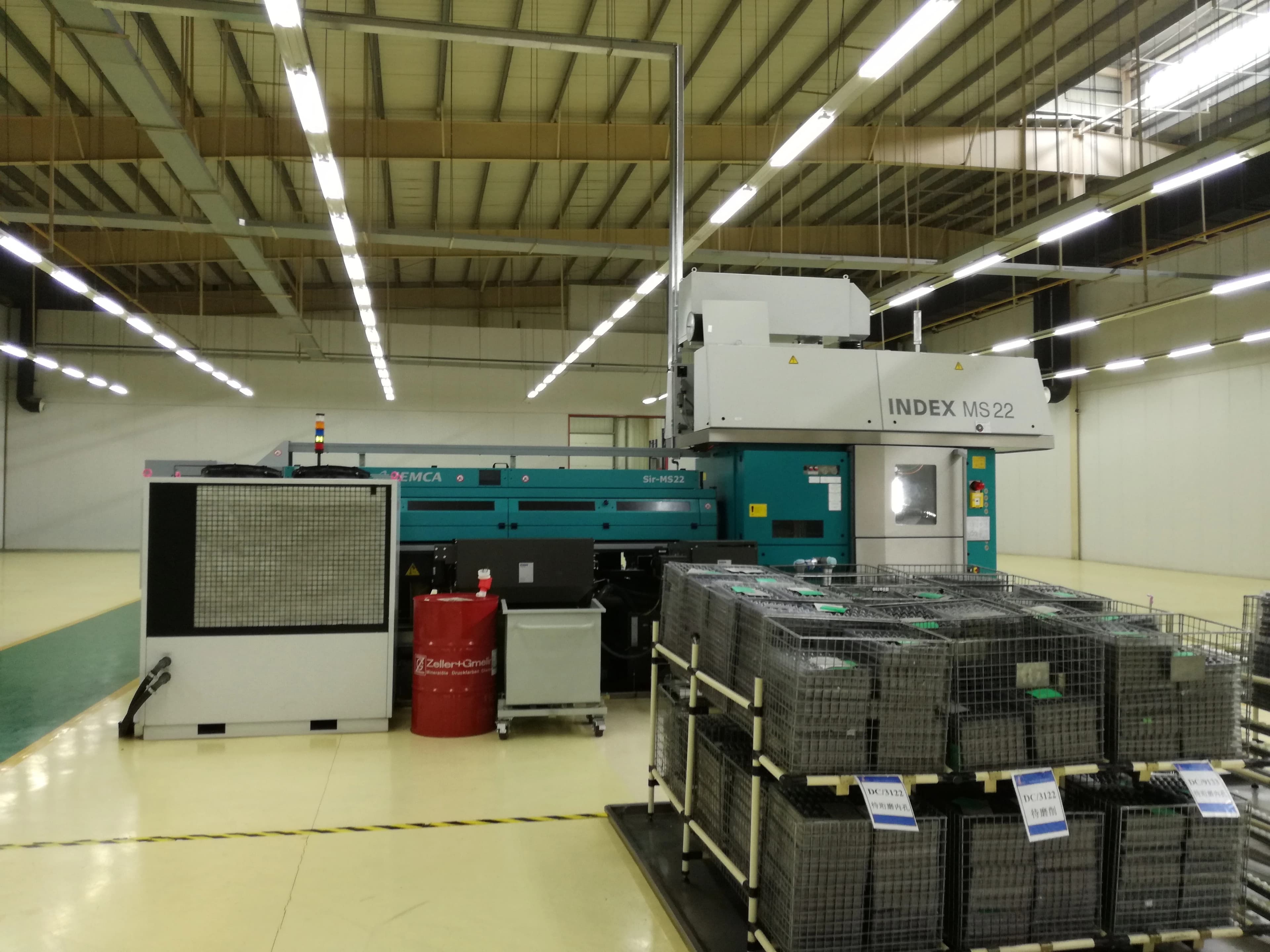

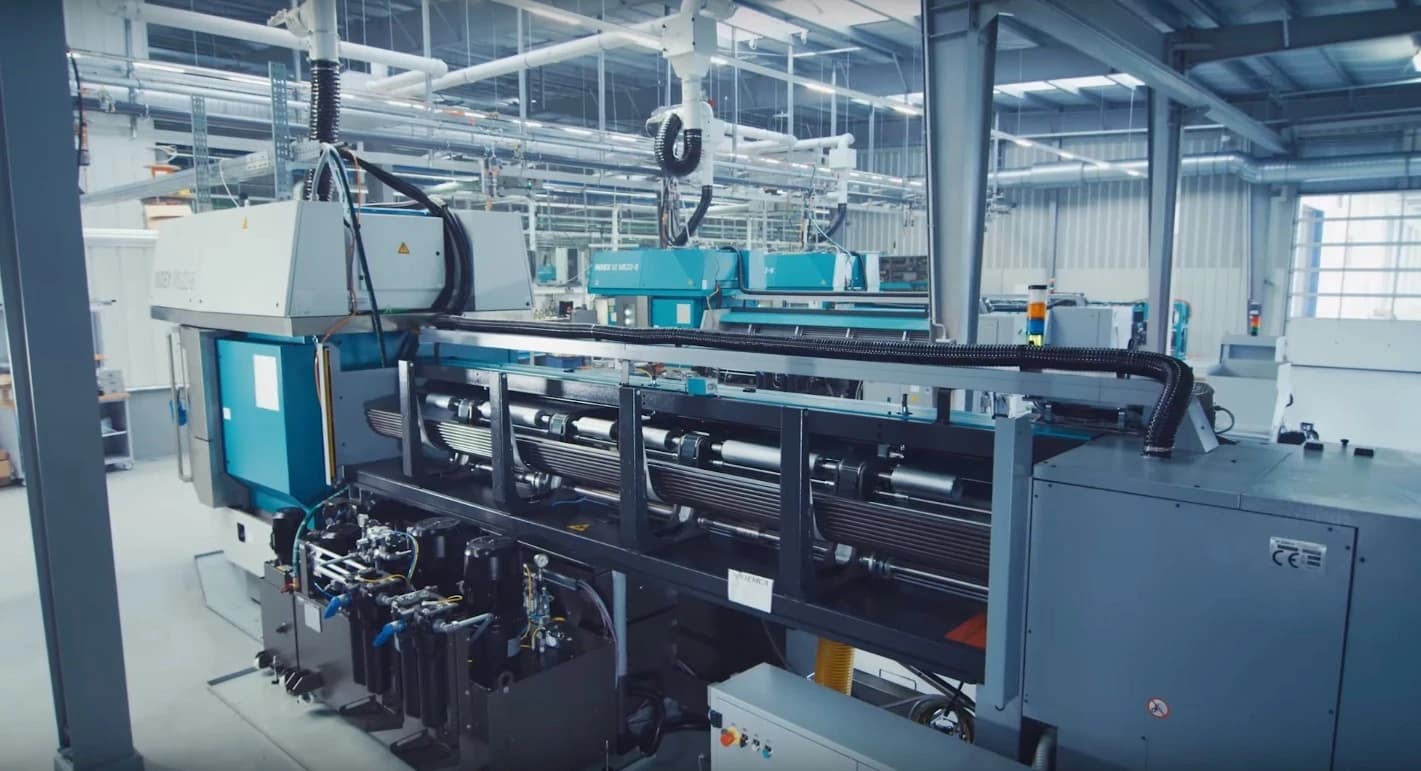

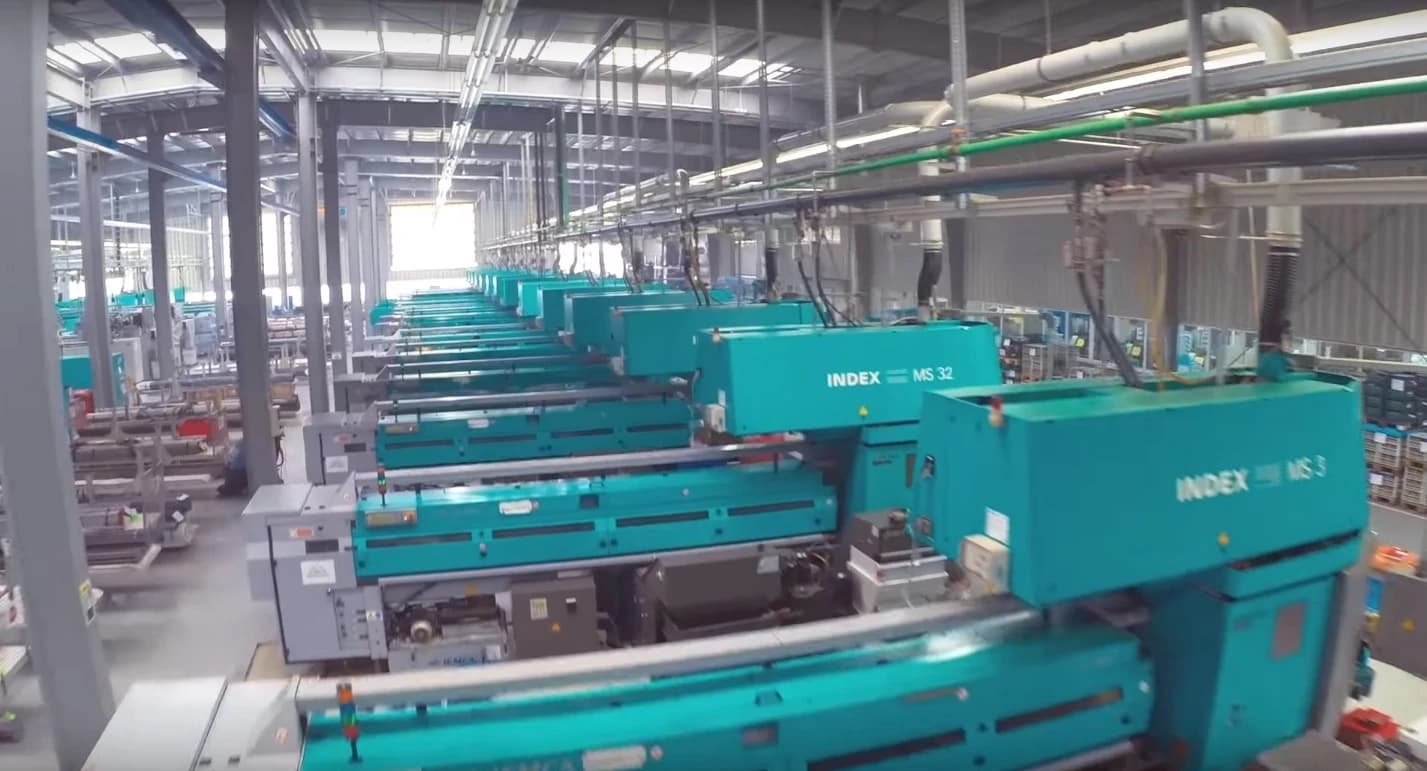

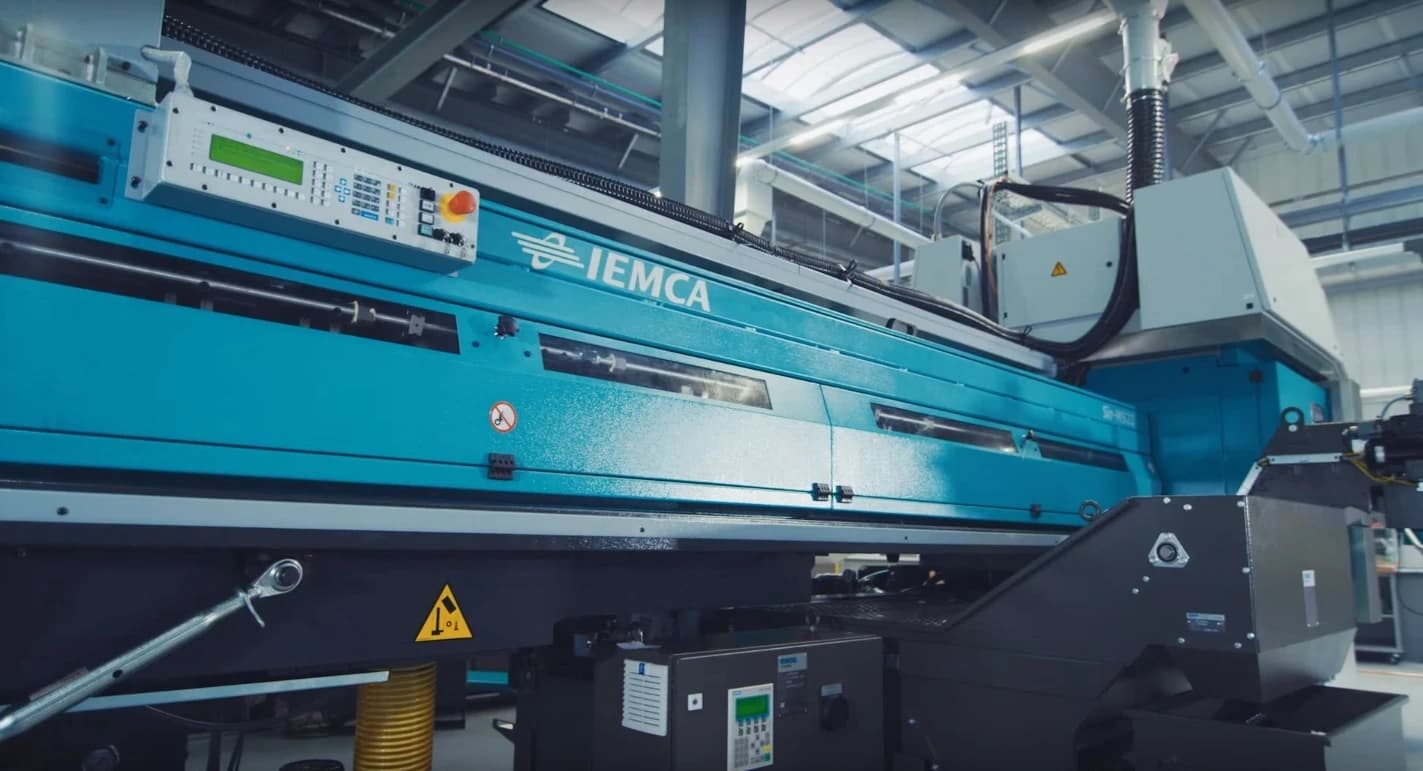

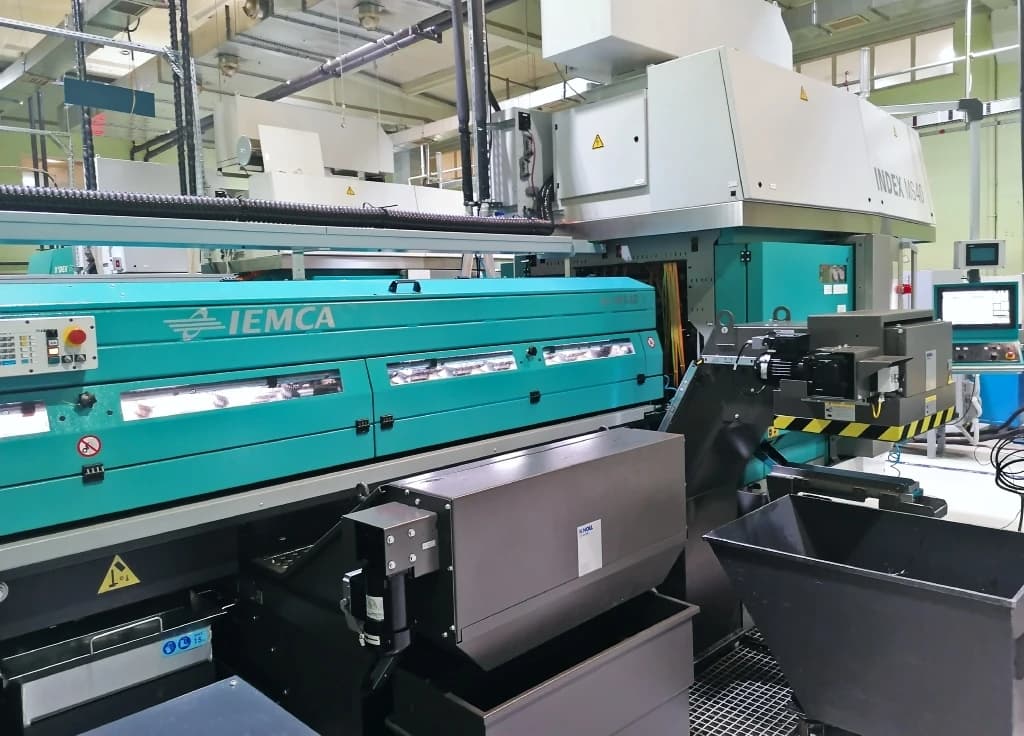

Installation examples
